Overview
We’ll implement an end-to-end pipeline:
– User uploads a document to WordPress Media.
– WordPress offloads the file to S3, sends a job to a Django API.
– Django downloads the file, runs OCR (if needed), chunks text, gets an LLM summary, and stores artifacts.
– Django posts results back to WordPress via a signed callback.
– WordPress saves a draft “Document Summary” post with structured fields.
Why this design
– Decoupled and fault-tolerant (Celery workers).
– Scales horizontally.
– Auditable (job records + signed callbacks).
– No long-running PHP on WordPress.

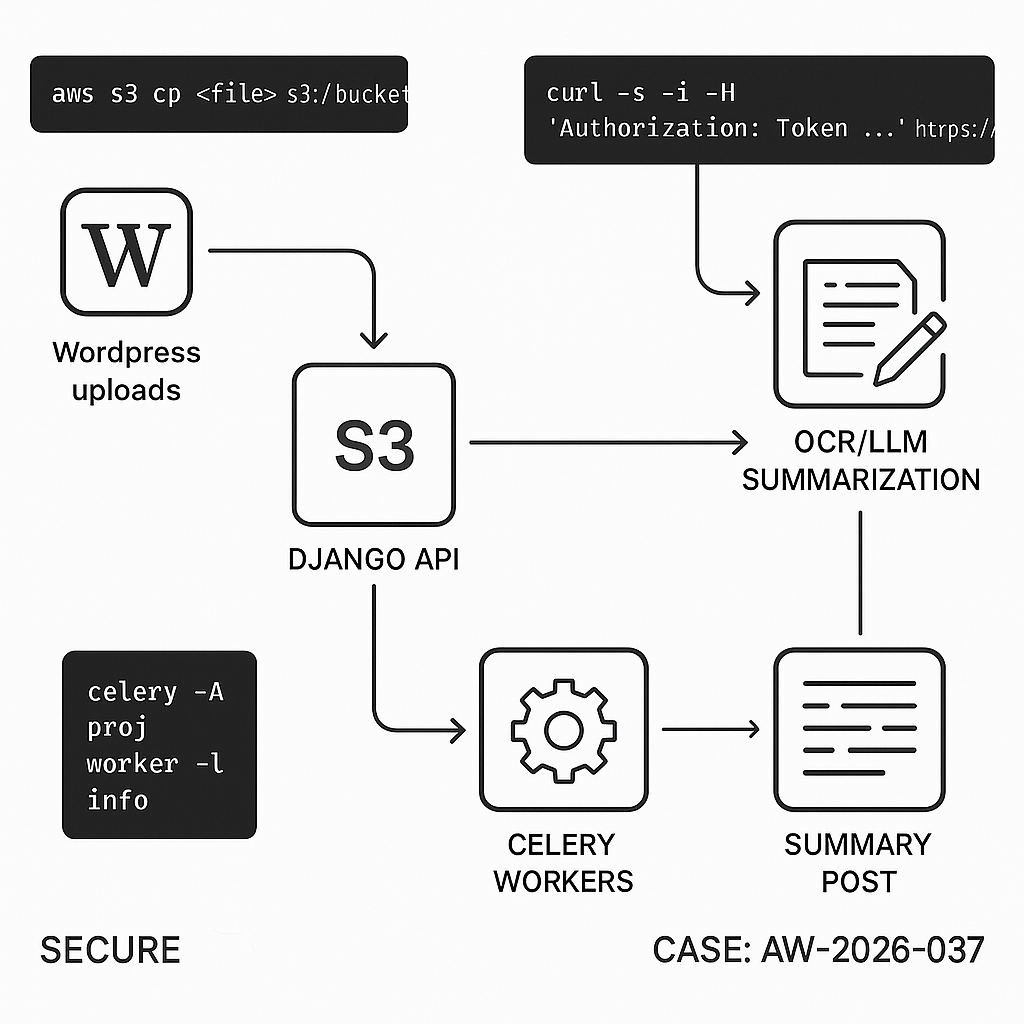

Architecture
– WordPress: tiny plugin + WP REST callback + S3 offload (plugin) + background initiation (Action Scheduler).
– Django: REST API (Django REST Framework), Celery workers, Redis broker, S3 storage, Tesseract OCR (optional), LLM provider (OpenAI or Anthropic).
– Security: HMAC-signed requests both directions, IP allowlist (optional), minimal scopes.
Prereqs
– WordPress 6.x, PHP 8.1+, Action Scheduler, WP Offload Media (or S3 Uploads).
– Django 5.x, Django REST Framework, Celery 5.x, Redis, boto3.
– S3 bucket + IAM with least-privilege.
– LLM provider API key.
– Domain + HTTPS on both services.
Step 1: WordPress plugin (initiate job + receive result)
Create wp-content/plugins/ai-doc-pipeline/ai-doc-pipeline.php
”,
‘wp_webhook_secret’ => wp_generate_password(32, false),
‘django_shared_secret’ => ”,
];
add_option(self::OPTION, $defaults);
$this->register_cpt();
flush_rewrite_rules();
}
public function register_cpt() {
register_post_type(self::CPT, [
‘label’ => ‘Document Summaries’,
‘public’ => false,
‘show_ui’ => true,
‘supports’ => [‘title’, ‘editor’, ‘custom-fields’],
]);
}
private function get_settings() {
return get_option(self::OPTION, []);
}
// On new media, enqueue a background action to notify Django
public function on_new_media($attachment_id) {
$mime = get_post_mime_type($attachment_id);
if (!preg_match(‘/(pdf|msword|officedocument|image|plain|rtf)/’, $mime)) return;
if (!class_exists(‘ActionScheduler’)) return; // require Action Scheduler
as_enqueue_async_action(‘aidoc_send_to_django’, [‘attachment_id’ => $attachment_id], ‘aidoc’);
}
}
new AIDocPipeline();
// Background action
add_action(‘aidoc_send_to_django’, function($attachment_id) {
$settings = get_option(AIDocPipeline::OPTION, []);
$endpoint = rtrim($settings[‘django_endpoint’] ?? ”, ‘/’);
$secret = $settings[‘django_shared_secret’] ?? ”;
if (!$endpoint || !$secret) return;
$url = wp_get_attachment_url($attachment_id);
if (!$url) return;
$payload = [
‘attachment_id’ => $attachment_id,
‘file_url’ => $url,
‘site’ => get_bloginfo(‘name’),
‘callback_url’ => rest_url(‘aidoc/v1/result’),
‘ts’ => time(),
];
$body = wp_json_encode($payload);
$sig = base64_encode(hash_hmac(‘sha256’, $body, $secret, true));
wp_remote_post($endpoint . ‘/api/v1/jobs’, [
‘headers’ => [
‘Content-Type’ => ‘application/json’,
‘X-AI-Signature’ => $sig,
],
‘body’ => $body,
‘timeout’ => 20,
]);
}, 10, 1);
// REST route to accept result
add_action(‘rest_api_init’, function() {
register_rest_route(‘aidoc/v1’, ‘/result’, [
‘methods’ => ‘POST’,
‘callback’ => function(WP_REST_Request $req) {
$settings = get_option(AIDocPipeline::OPTION, []);
$secret = $settings[‘wp_webhook_secret’] ?? ”;
$raw = $req->get_body();
$sig = $req->get_header(‘x-ai-signature’) ?? ”;
$ts = intval($req->get_header(‘x-ai-timestamp’) ?? ‘0’);
if (abs(time() – $ts) > 300) return new WP_Error(‘stale’, ‘Stale request’, [‘status’ => 401]);
$calc = base64_encode(hash_hmac(‘sha256’, $raw, $secret, true));
if (!hash_equals($calc, $sig)) return new WP_Error(‘bad_sig’, ‘Invalid signature’, [‘status’ => 401]);
$data = json_decode($raw, true);
if (!$data) return new WP_Error(‘bad_json’, ‘Invalid JSON’, [‘status’ => 400]);
// Create or update summary post
$post_id = wp_insert_post([
‘post_type’ => AIDocPipeline::CPT,
‘post_status’ => ‘draft’,
‘post_title’ => sanitize_text_field($data[‘title’] ?? ‘Untitled Summary’),
‘post_content’ => wp_kses_post($data[‘summary_markdown’] ?? ”),
]);
if ($post_id && !is_wp_error($post_id)) {
update_post_meta($post_id, ‘_source_attachment_id’, intval($data[‘attachment_id’] ?? 0));
update_post_meta($post_id, ‘_word_count’, intval($data[‘word_count’] ?? 0));
update_post_meta($post_id, ‘_processing_ms’, intval($data[‘processing_ms’] ?? 0));
update_post_meta($post_id, ‘_chunks’, intval($data[‘chunks’] ?? 0));
update_post_meta($post_id, ‘_s3_text_key’, sanitize_text_field($data[‘s3_text_key’] ?? ”));
update_post_meta($post_id, ‘_job_id’, sanitize_text_field($data[‘job_id’] ?? ”));
}
return [‘ok’ => true, ‘post_id’ => $post_id];
},
‘permission_callback’ => ‘__return_true’,
]);
});
Notes:
– Install “Action Scheduler” plugin.
– Configure settings via wp option update or a small admin page (omitted for brevity).
– Ensure media offloading to S3 is active so Django can fetch public or presigned URLs.
Step 2: Django project setup
Create a Django project with DRF and Celery.
pip install django djangorestframework celery redis boto3 pydantic python-dotenv httpx pypdf pytesseract Pillow pdfminer.six fastembed
settings.py (key lines)
– Add rest_framework to INSTALLED_APPS.
– Configure Redis URL and Celery.
– Store secrets via env.
CELERY_BROKER_URL = env(“REDIS_URL”)
CELERY_RESULT_BACKEND = env(“REDIS_URL”)
AI_SHARED_SECRET = env(“AI_SHARED_SECRET”) # matches WordPress django_shared_secret
WP_CALLBACK_SECRET = env(“WP_CALLBACK_SECRET”) # matches WordPress wp_webhook_secret
WP_ALLOWED_CALLBACKS = env.list(“WP_ALLOWED_CALLBACKS”, default=[]) # optional IPs
S3 config:
AWS_ACCESS_KEY_ID = env(“AWS_ACCESS_KEY_ID”)
AWS_SECRET_ACCESS_KEY = env(“AWS_SECRET_ACCESS_KEY”)
AWS_STORAGE_BUCKET_NAME = env(“AWS_STORAGE_BUCKET_NAME”)
AWS_S3_REGION_NAME = env(“AWS_S3_REGION_NAME”)
celery.py
from __future__ import annotations
import os
from celery import Celery
os.environ.setdefault(“DJANGO_SETTINGS_MODULE”, “core.settings”)
app = Celery(“core”)
app.config_from_object(“django.conf:settings”, namespace=”CELERY”)
app.autodiscover_tasks()
urls.py
from django.urls import path
from api.views import JobView
urlpatterns = [path(“api/v1/jobs”, JobView.as_view())]
Step 3: Django API view (verify HMAC and enqueue task)
api/views.py
import base64, hmac, hashlib, time, uuid, json
from rest_framework.views import APIView
from rest_framework.response import Response
from rest_framework import status
from django.conf import settings
from .tasks import process_document
def verify_sig(raw: bytes, sig: str, secret: str) -> bool:
calc = base64.b64encode(hmac.new(secret.encode(), raw, hashlib.sha256).digest()).decode()
return hmac.compare_digest(calc, sig or “”)
class JobView(APIView):
authentication_classes = []
permission_classes = []
def post(self, request):
raw = request.body
sig = request.headers.get(“X-AI-Signature”, “”)
if not verify_sig(raw, sig, settings.AI_SHARED_SECRET):
return Response({“error”: “bad signature”}, status=status.HTTP_401_UNAUTHORIZED)
data = request.data
job_id = str(uuid.uuid4())
process_document.delay(job_id, data)
return Response({“ok”: True, “job_id”: job_id})
Step 4: Celery task (download, OCR/text, chunk, summarize, store, callback)
api/tasks.py
import time, io, os, base64, hmac, hashlib, json
import httpx, boto3
from django.conf import settings
from celery import shared_task
from pydantic import BaseModel
from pdfminer.high_level import extract_text as pdf_text
from pypdf import PdfReader
from PIL import Image
import pytesseract
class JobPayload(BaseModel):
attachment_id: int
file_url: str
site: str
callback_url: str
ts: int
def hmac_b64(secret: str, body: bytes) -> str:
import hashlib, hmac, base64
return base64.b64encode(hmac.new(secret.encode(), body, hashlib.sha256).digest()).decode()
def extract_from_pdf(data: bytes) -> str:
try:
return pdf_text(io.BytesIO(data))
except Exception:
# Fallback OCR on each page if text layer missing
txt = []
reader = PdfReader(io.BytesIO(data))
for page in reader.pages:
# Basic rasterization approach assumed; for production use a PDF to image lib
pass
return “n”.join(txt)
def extract_from_image(data: bytes) -> str:
img = Image.open(io.BytesIO(data)).convert(“RGB”)
return pytesseract.image_to_string(img)
async def fetch_bytes(url: str) -> bytes:
async with httpx.AsyncClient(timeout=60.0, follow_redirects=True) as client:
r = await client.get(url)
r.raise_for_status()
return r.content
def chunk_text(text: str, size=1200, overlap=150):
tokens = text.split()
out = []
i = 0
while i str:
# Replace with your provider; example uses OpenAI responses API compatible call via httpx
api_key = os.environ.get(“OPENAI_API_KEY”)
headers = {“Authorization”: f”Bearer {api_key}”, “Content-Type”: “application/json”}
system = “You are a technical summarizer. Produce a concise, structured summary with headings and bullet points. Keep code blocks when useful.”
all_sections = []
async with httpx.AsyncClient(timeout=60.0) as client:
for idx, ch in enumerate(chunks):
payload = {
“model”: “gpt-4o-mini”,
“input”: [
{“role”:”system”,”content”:system},
{“role”:”user”,”content”:f”Part {idx+1}/{len(chunks)}:n{ch}nSummarize key points.”}
]
}
r = await client.post(“https://api.openai.com/v1/responses”, json=payload, headers=headers)
r.raise_for_status()
txt = r.json().get(“output_text”,””).strip()
all_sections.append(txt)
# Final pass
final_prompt = “Combine these partial summaries into one cohesive markdown summary with sections, bullets, and a short executive overview:n” + “nn”.join(all_sections)
payload = {“model”:”gpt-4o-mini”,”input”:[{“role”:”user”,”content”:final_prompt}]}
r = await client.post(“https://api.openai.com/v1/responses”, json=payload, headers=headers)
r.raise_for_status()
return r.json().get(“output_text”,””)
@shared_task(bind=True, max_retries=3, default_retry_delay=30)
def process_document(self, job_id: str, data: dict):
t0 = time.time()
payload = JobPayload(**data)
# 1) Download file
content = httpx.run(fetch_bytes(payload.file_url))
# 2) Extract text
text = “”
if any(payload.file_url.lower().endswith(x) for x in [“.pdf”]):
text = extract_from_pdf(content)
elif any(payload.file_url.lower().endswith(x) for x in [“.png”,”.jpg”,”.jpeg”,”.tif”,”.tiff”,”.webp”]):
text = extract_from_image(content)
else:
try:
text = content.decode(“utf-8″, errors=”ignore”)
except Exception:
text = “”
text = (text or “”).strip()
if not text:
raise self.retry(exc=RuntimeError(“No text extracted”))
# 3) Chunk + summarize
chunks = chunk_text(text)
summary_md = httpx.run(llm_summarize(chunks))
# 4) Store raw text to S3
s3 = boto3.client(“s3″, region_name=settings.AWS_S3_REGION_NAME,
aws_access_key_id=settings.AWS_ACCESS_KEY_ID,
aws_secret_access_key=settings.AWS_SECRET_ACCESS_KEY)
s3_key = f”processed/{job_id}/text.txt”
s3.put_object(Bucket=settings.AWS_STORAGE_BUCKET_NAME, Key=s3_key, Body=text.encode(“utf-8″), ContentType=”text/plain”)
# 5) Callback to WordPress (signed)
body = json.dumps({
“job_id”: job_id,
“attachment_id”: payload.attachment_id,
“title”: f”Summary of {payload.attachment_id}”,
“summary_markdown”: summary_md,
“word_count”: len(text.split()),
“processing_ms”: int((time.time() – t0)*1000),
“chunks”: len(chunks),
“s3_text_key”: s3_key
})
sig = hmac_b64(settings.WP_CALLBACK_SECRET, body.encode())
headers = {
“Content-Type”: “application/json”,
“X-AI-Signature”: sig,
“X-AI-Timestamp”: str(int(time.time()))
}
with httpx.Client(timeout=20.0) as client:
r = client.post(payload.callback_url, data=body, headers=headers)
r.raise_for_status()
return {“ok”: True, “job_id”: job_id}
Notes:
– httpx.run is a simple helper for running async coroutines in sync Celery; alternatively use asyncio.run().
– Replace the OpenAI call with your provider/model as needed.
– For production OCR on PDFs, integrate a robust rasterizer (e.g., pdf2image + poppler).
Step 5: Environment and run
.env (Django)
REDIS_URL=redis://localhost:6379/0
AI_SHARED_SECRET=replace-with-strong-random
WP_CALLBACK_SECRET=replace-with-strong-random
AWS_ACCESS_KEY_ID=…
AWS_SECRET_ACCESS_KEY=…
AWS_STORAGE_BUCKET_NAME=…
AWS_S3_REGION_NAME=us-west-2
OPENAI_API_KEY=…
WordPress options (match Django)
– django_shared_secret = AI_SHARED_SECRET
– wp_webhook_secret = WP_CALLBACK_SECRET
– django_endpoint = https://api.your-domain.com
Run
– Redis: redis-server
– Django: python manage.py runserver 0.0.0.0:8000 (behind nginx/gunicorn in prod)
– Celery: celery -A core.celery:app worker -l info -Q default -c 4
Step 6: Security hardening
– Only accept signed requests. Rotate secrets periodically.
– Validate file types and size limits on WordPress.
– Consider presigned S3 URLs instead of public media.
– Add IP allowlists on the WordPress callback route at the web server level.
– Enforce 5-minute freshness on timestamps (already in WP receiver).
Step 7: Observability
– Add job table in Django to persist status, errors, and durations.
– Emit structured logs (JSON) and correlate by job_id.
– Track cost: store chunk counts and prompt tokens if your provider exposes them.
Step 8: Performance tips
– Use batch Celery queues for large backlogs; set concurrency based on CPU.
– Cache OCR results for identical files (hash by SHA256).
– Use streaming uploads to S3; avoid loading large files fully in memory.
– Switch to embeddings + extractive summarization for very long docs to reduce LLM cost.
Minimal test with curl
– Simulate WordPress → Django:
curl -X POST https://api.your-domain.com/api/v1/jobs
-H “Content-Type: application/json”
-H “X-AI-Signature: $(printf ‘%s’ ‘{“attachment_id”:1,”file_url”:”https://…/sample.pdf”,”site”:”Test”,”callback_url”:”https://wp.site.com/wp-json/aidoc/v1/result”,”ts”:123}’ | openssl dgst -sha256 -hmac ‘AI_SHARED_SECRET’ -binary | openssl base64)”
-d ‘{“attachment_id”:1,”file_url”:”https://…/sample.pdf”,”site”:”Test”,”callback_url”:”https://wp.site.com/wp-json/aidoc/v1/result”,”ts”:123}’
– Simulate Django → WordPress:
curl -X POST https://wp.site.com/wp-json/aidoc/v1/result
-H “Content-Type: application/json”
-H “X-AI-Timestamp: 1700000000”
-H “X-AI-Signature: $(printf ‘%s’ ‘{“job_id”:”1″,”attachment_id”:1,”title”:”t”,”summary_markdown”:”s”}’ | openssl dgst -sha256 -hmac ‘WP_CALLBACK_SECRET’ -binary | openssl base64)”
-d ‘{“job_id”:”1″,”attachment_id”:1,”title”:”t”,”summary_markdown”:”s”}’
What you get
– Automated, resilient summarization pipeline.
– Clear security boundaries with HMAC.
– A reusable pattern for any long-running AI task initiated from WordPress.
